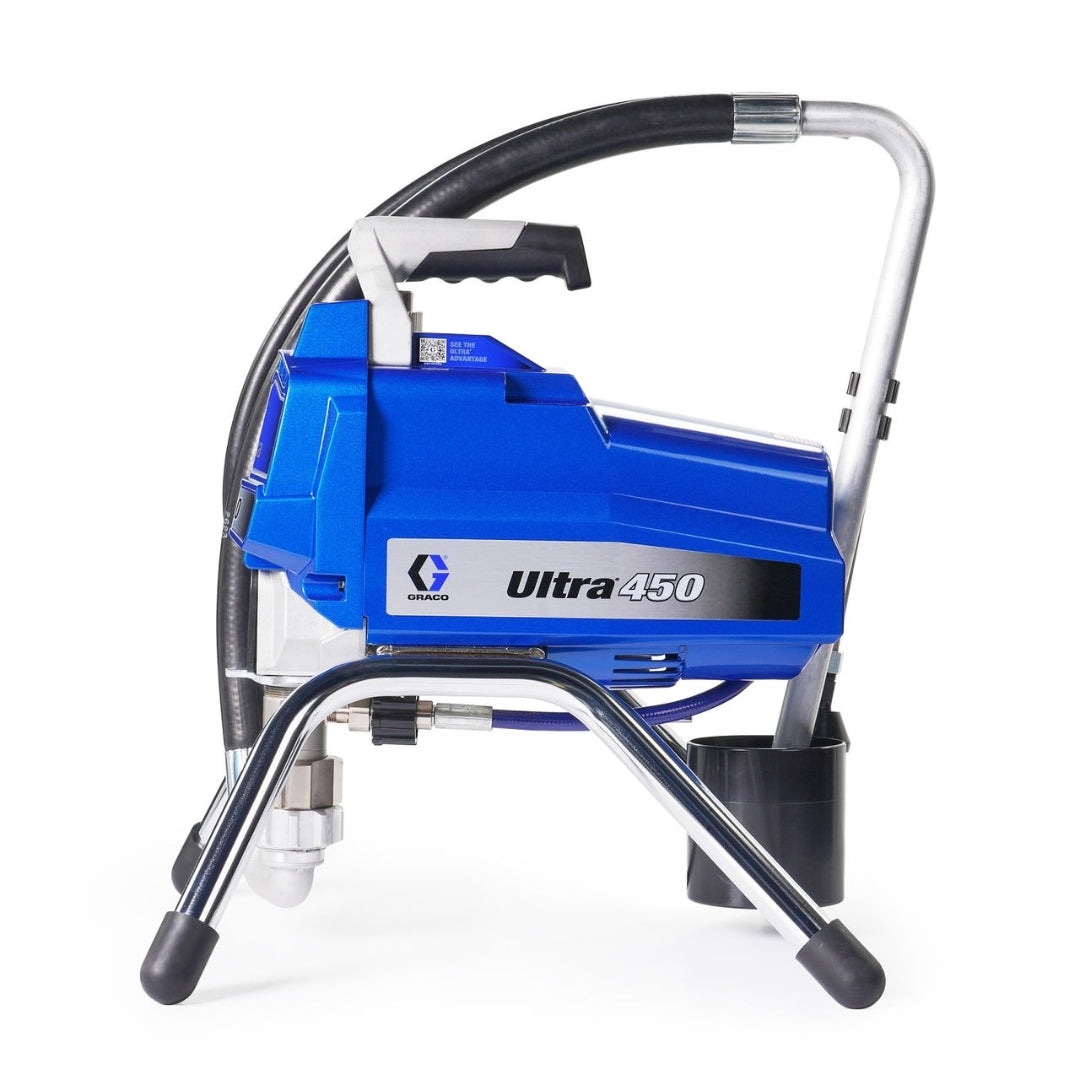

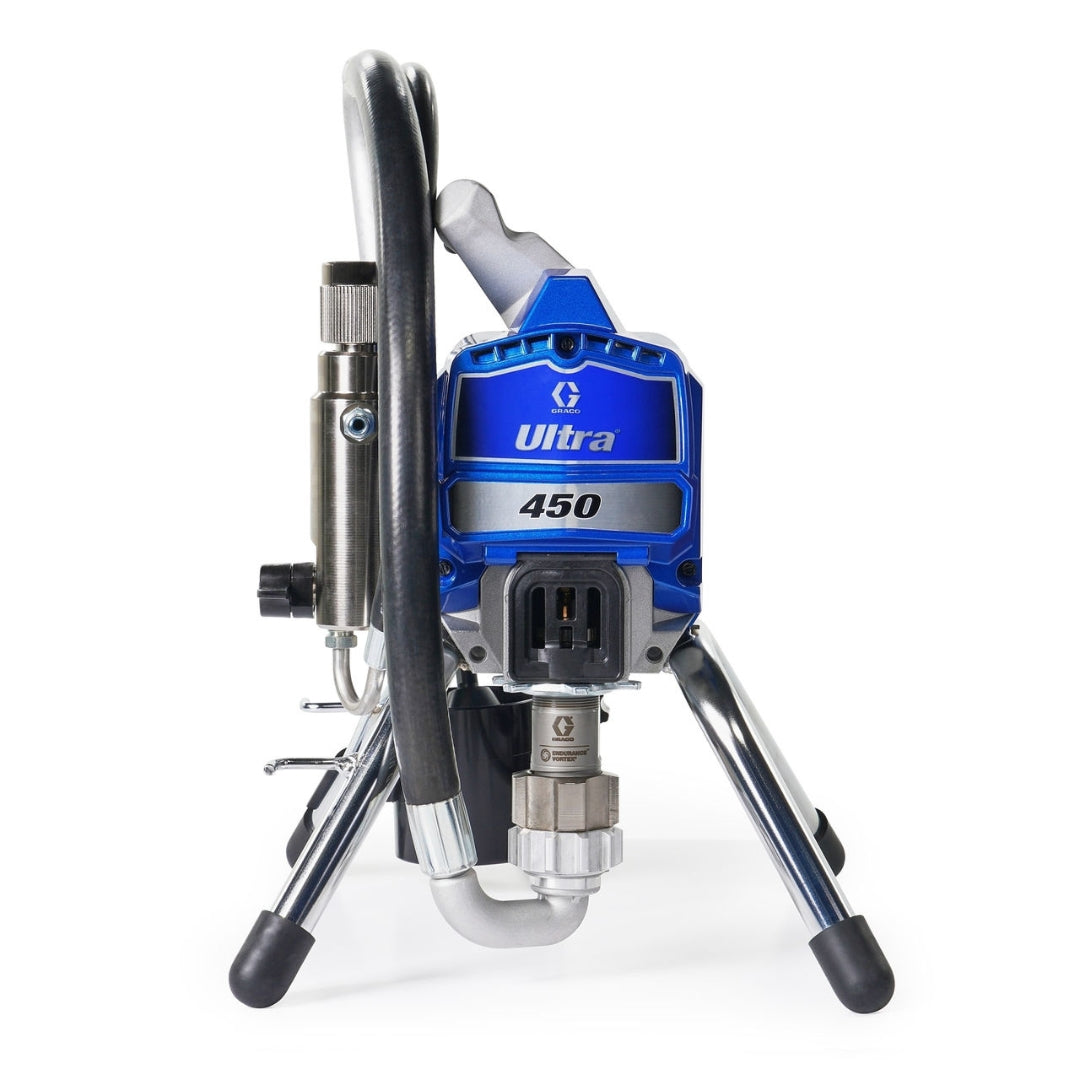

Graco Ultra 450 Electric Airless Paint Sprayer, Stand, 25F506

Lightweight Professional Airless Sprayer for Painting Contractors

The Graco Ultra 450 Electric Airless Paint Sprayer – Stand, 25F506 combines professional airless performance with an exceptionally compact, lightweight design.

Weighing only 28 lb, the Stand configuration is designed for contractors who need a full-performance airless sprayer that's easy to carry between jobsites and takes up less room in a work vehicle.

With a maximum flow rate of 0.54 GPM, support for tips up to .023", and up to 3,300 PSI, the Ultra 450 is equipped for professional interior and exterior painting. SmartControl, WatchDog Pump Protection and FastFlush help maintain consistent performance while reducing downtime, pump wear and cleanup time.

Why Choose the Graco Ultra 450 Stand?

• Only 28 lb for easy jobsite transport

• Compact Stand configuration

• Maximum flow rate of 0.54 GPM

• Supports airless spray tips up to .023"

• Maximum working pressure of 3,300 PSI

• SmartControl with Digital Display

• WatchDog Pump Protection

• FastFlush high-flow cleaning system

• Endurance Vortex Piston Pump

• ProConnect on-the-job pump replacement

• 1.1 HP maintenance-free brushless DC motor

• Advantage Drive with hardened steel gears

• Easy Out Pump Filter

• Swivel inlet suction hose

• Contractor PC Airless Spray Gun

• RAC X LP 517 SwitchTip included

• 50 ft BlueMax II airless hose included

Built for Portability

At just 28 lb, the Ultra 450 Stand is Graco's compact configuration for contractors who frequently move equipment between jobsites.

Its dimensions are approximately:

Height: 17.5"
Length: 16"
Width: 13.5"

The compact footprint takes up less room in a work vehicle while the four-leg steel stand provides stability during spraying.

If portability and storage space are priorities, the 25F506 Stand is the Ultra 450 configuration to consider.

Professional Airless Performance

Despite its compact size, the Ultra 450 Stand delivers:

Maximum Flow: 0.54 GPM / 2.0 L/min
Maximum Pressure: 3,300 PSI
Maximum Tip Size: .023"

This combination provides the performance required for professional residential and commercial painting while retaining the portability of a compact stand sprayer.

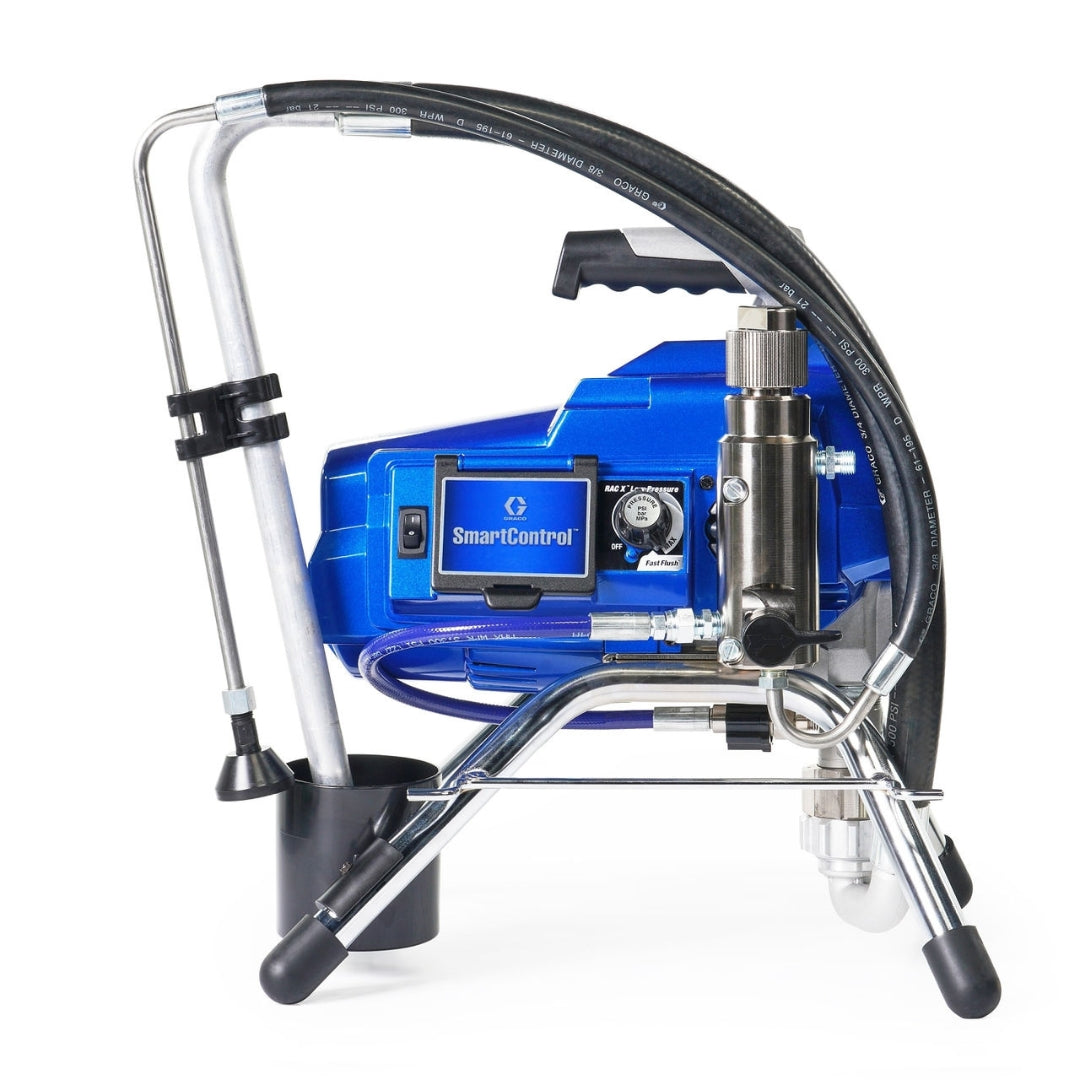

SmartControl with Digital Display

Graco SmartControl automatically adjusts motor speed to match the installed tip size and spraying requirements, helping maintain consistent pressure and spray performance.

The digital display provides real-time information including:

• Pressure

• Gallons sprayed

• Operating hours

• Diagnostics

This makes it easier to monitor sprayer performance and track maintenance requirements.

WatchDog Pump Protection

Running an airless pump dry can cause unnecessary wear.

WatchDog Pump Protection monitors the sprayer and automatically shuts the pump down when the paint supply runs out.

This helps protect the pump while reducing unnecessary downtime and wear.

Endurance Vortex Piston Pump

The Ultra 450 uses Graco's Endurance Vortex Piston Pump.

The Vortex design automatically rotates the piston rod during operation to distribute wear and extend pump life.

Graco states that its Endurance Vortex pump is designed to spray 3X more gallons than the nearest competitor before requiring service.

ProConnect Pump Replacement

If pump service is eventually required, the ProConnect Pump Replacement System allows the pump to be replaced directly on the jobsite.

Pump swaps can be completed in minutes without loose pins or small parts, helping professional contractors minimize downtime.

The replacement pump for the Ultra 450 is:

Graco Endurance Vortex Piston Pump – 19D873

1.1 HP Brushless DC Motor

The Ultra 450 uses a 1.1 HP brushless DC motor with Graco Advantage Drive.

The maintenance-free brushless motor provides the power required to deliver up to 3,300 PSI while eliminating the maintenance associated with motor brushes.

Advantage Drive

Graco's Advantage Drive uses hardened steel gears engineered for smooth, reliable operation.

Graco backs the Advantage Drive gears with a Lifetime Warranty.

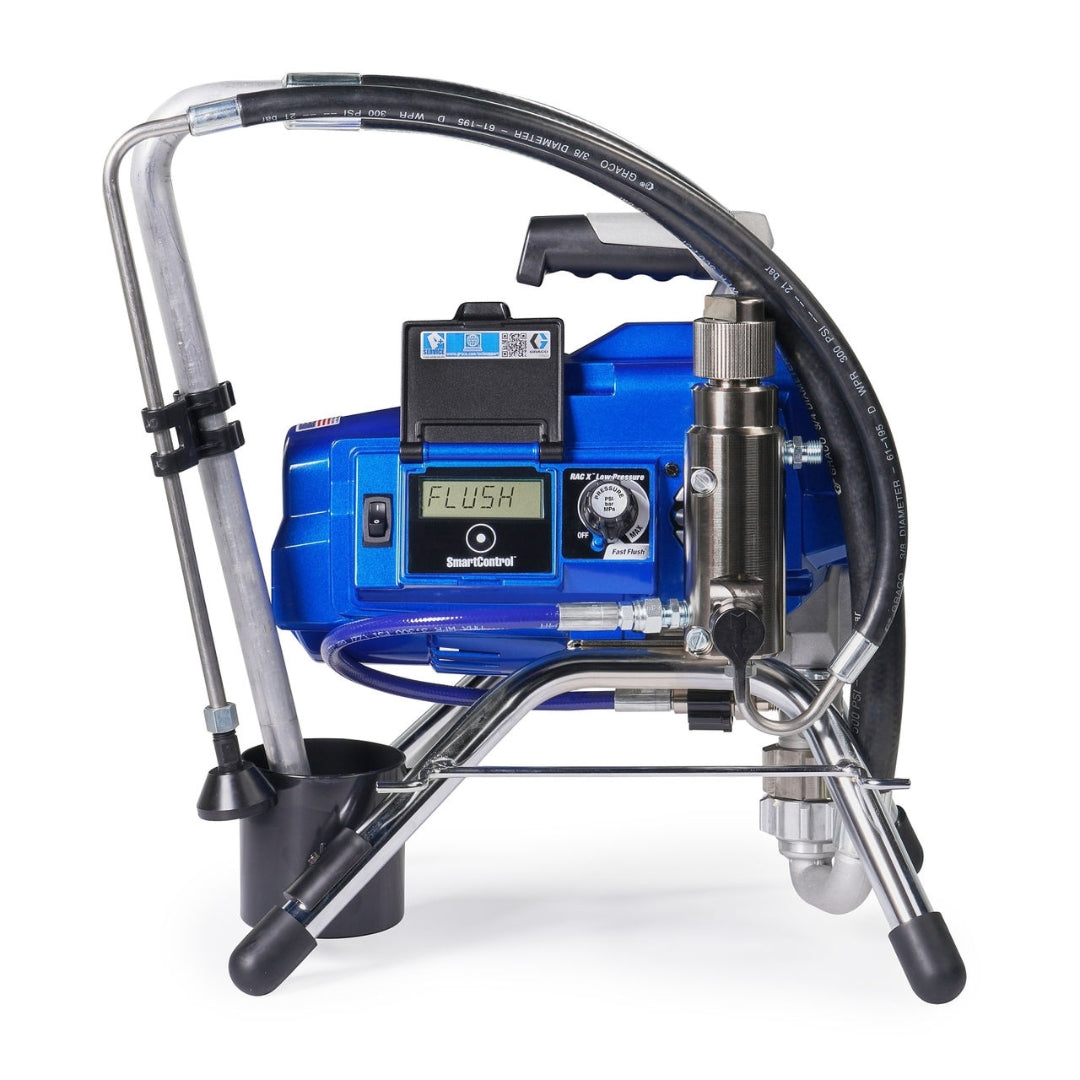

FastFlush Cleaning System

The FastFlush High-Flow Cleaning System increases fluid velocity during cleanup.

Graco states that FastFlush cleans the pump 2X faster while using half the fluid, helping contractors spend less time cleaning equipment between jobs.

Easy Out Pump Filter

The Easy Out Pump Filter uses a large-surface-area, inside-out filtering design to help:

• Reduce tip clogs

• Maintain finish quality

• Simplify filter maintenance

Swivel Inlet Suction Hose

The swivel inlet suction hose makes it easier to position the suction tube inside paint containers and improves flexibility around the sprayer during use.

Contractor PC Spray Gun

The Ultra 450 includes Graco's Contractor PC Airless Spray Gun.

The Contractor PC is designed for professional all-day spraying with a lighter trigger pull and an easily replaceable ProConnect cartridge that allows the gun to be rebuilt quickly.

RAC X Low Pressure SwitchTips

The Ultra 450 includes a RAC X LP 517 SwitchTip.

Graco RAC X Low Pressure tips allow contractors to spray at lower pressure while maintaining a professional airless finish.

Graco states that RAC X Low Pressure SwitchTips can provide:

• Up to 2X longer tip life

• Up to 50% less overspray

• A consistent professional airless finish

The Ultra 450 supports tip sizes up to .023".

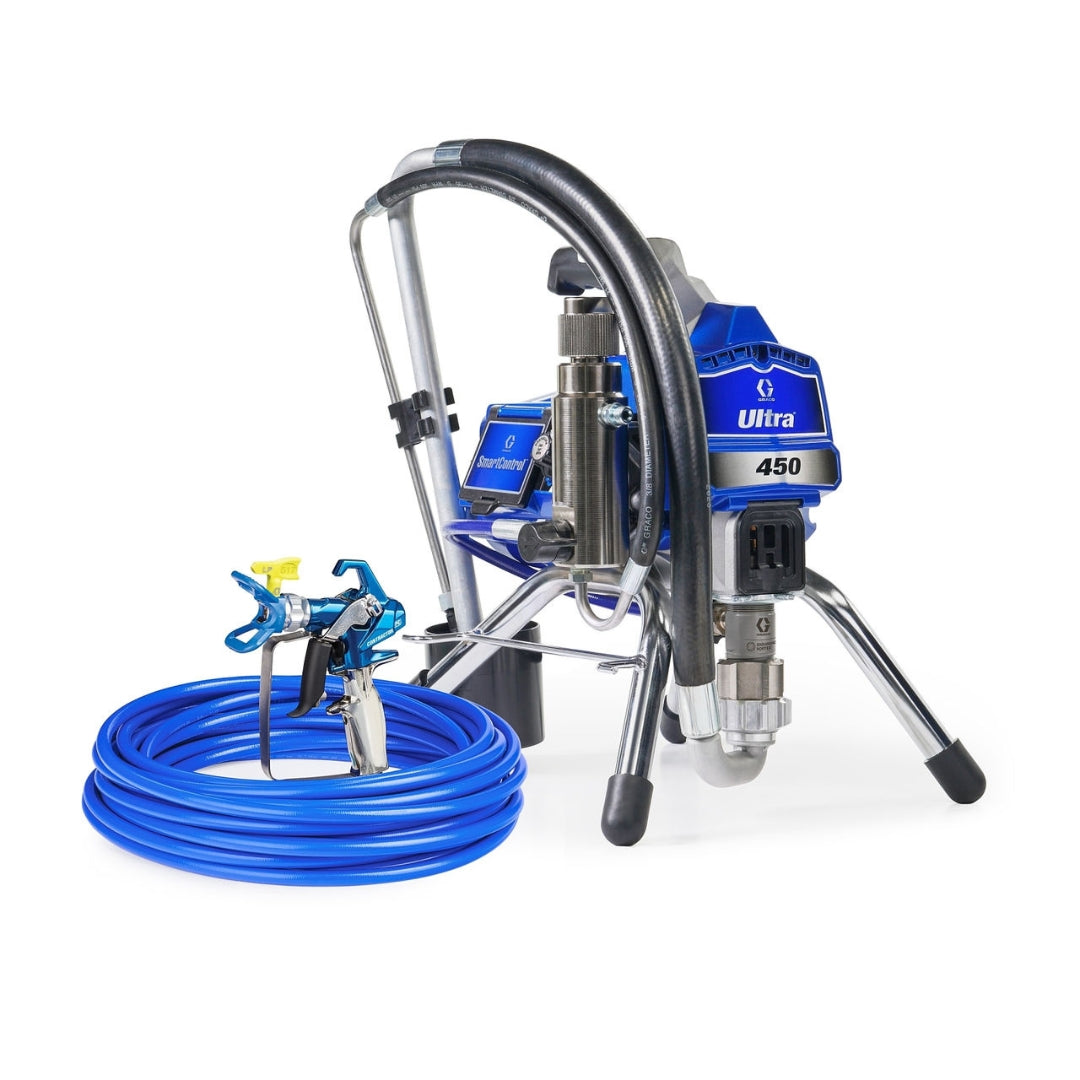

What's Included?

The Graco Ultra 450 Stand 25F506 includes:

• Graco Ultra 450 Stand Airless Sprayer

• Contractor PC Airless Spray Gun

• RAC X LP 517 SwitchTip

• RAC X HandTite Tip Guard

• 1/4" x 50 ft BlueMax II Airless Hose

• 4 oz TSL Throat Seal Liquid

Stand vs. Hi-Cart: Which Ultra 450 Should You Choose?

The Ultra 450 Stand 25F506 and Ultra 450 Hi-Cart 25F508 deliver the same core spraying performance:

Maximum Flow: 0.54 GPM
Maximum Pressure: 3,300 PSI
Maximum Tip Size: .023"
Voltage: 120V

The primary difference is the frame configuration.

Choose the Ultra 450 Stand 25F506 if:

• You frequently carry your sprayer between jobsites

• Lower weight is important

• Vehicle storage space is limited

• You prefer a compact sprayer

• You want the lightest Ultra 450 configuration

The Stand weighs only 28 lb.

Choose the Ultra 450 Hi-Cart 25F508 if:

• You prefer a full-height cart

• You frequently move the sprayer around larger jobsites

• You prefer a cart-style configuration for working directly from paint containers

• Portability by carrying is less important

The Hi-Cart weighs approximately 63 lb.

Prefer the cart configuration? Shop the Graco Ultra 450 Hi-Cart 25F508.

Technical Specifications

Manufacturer: Graco
Model: Ultra 450
Part Number: 25F506
Configuration: Stand
Type: Professional Electric Airless Sprayer
Voltage: 120V
Motor: 1.1 HP Brushless DC
Maximum Flow Rate: 0.54 GPM / 2.0 L/min
Maximum Working Pressure: 3,300 PSI / 228 bar
Maximum Tip Size: .023"
Cycles Per Gallon: 700
Fluid Outlet: 1/4" NPSM
Minimum Generator Power: 3,000 W
Height: 17.5" / 44.5 cm
Length: 16" / 40.6 cm
Width: 13.5" / 34.3 cm
Weight: 28 lb / 12.7 kgSound Power Level: 100 dB(A)
Pump: Endurance Vortex Piston Pump
Replacement Pump: 19D873
Pump Repair Kit: 18B260

Frequently Asked Questions

What is the Graco Ultra 450 25F506?

The Graco Ultra 450 25F506 is a professional 120V electric airless paint sprayer featuring a compact Stand configuration. It delivers up to 0.54 GPM, 3,300 PSI and supports spray tips up to .023".

How much does the Graco Ultra 450 Stand weigh?

The 25F506 Stand model weighs approximately 28 lb, making it the lighter and more compact Ultra 450 configuration compared with the Hi-Cart model.

What is the maximum tip size for the Ultra 450?

The Graco Ultra 450 supports a maximum airless tip size of .023".

What is the flow rate of the Graco Ultra 450?

The Ultra 450 has a maximum flow rate of 0.54 GPM, or approximately 2.0 litres per minute.

What is the maximum pressure of the Ultra 450?

The maximum working pressure is 3,300 PSI.

What spray tip comes with the Ultra 450?

The Ultra 450 25F506 includes a Graco RAC X LP 517 SwitchTip and RAC X HandTite Tip Guard.

What spray gun comes with the Ultra 450?

The sprayer includes a Graco Contractor PC Airless Spray Gun.

How long is the included hose?

The Ultra 450 includes a 1/4" x 50 ft BlueMax II airless hose.

Does the Ultra 450 have SmartControl?

Yes. SmartControl automatically adjusts motor speed according to spraying requirements to help maintain consistent pressure. The digital display also provides pressure, gallons, operating hours and diagnostic information.

What does WatchDog Pump Protection do?

WatchDog automatically shuts the pump down when the sprayer runs out of paint, helping prevent unnecessary pump wear.

Does the Ultra 450 have ProConnect?

Yes. The ProConnect system allows the Endurance Vortex pump to be replaced on the jobsite in minutes.

What replacement pump does the Ultra 450 use?

Graco lists the 19D873 Endurance Vortex Piston Pump as the replacement pump for the Ultra 450.

What is FastFlush?

FastFlush is Graco's high-flow cleaning system. Graco states that it can clean the pump approximately twice as fast while using half the cleaning fluid.

What size generator is required for the Ultra 450?

Graco specifies a minimum 3,000-watt generator.

Is the Ultra 450 Stand or Hi-Cart more portable?

The Stand 25F506 is considerably easier to carry. It weighs approximately 28 lb, compared with approximately 63 lb for the Hi-Cart 25F508.

Do the Ultra 450 Stand and Hi-Cart have the same spraying performance?

Yes. Both configurations are rated for up to 0.54 GPM, 3,300 PSI and a maximum .023" tip. The major difference is the frame configuration, dimensions and weight.

What is included with the Graco Ultra 450 25F506?

The package includes the Ultra 450 Stand sprayer, Contractor PC gun, RAC X LP 517 SwitchTip, RAC X HandTite tip guard, 50 ft BlueMax II airless hose and 4 oz of TSL Throat Seal Liquid.
