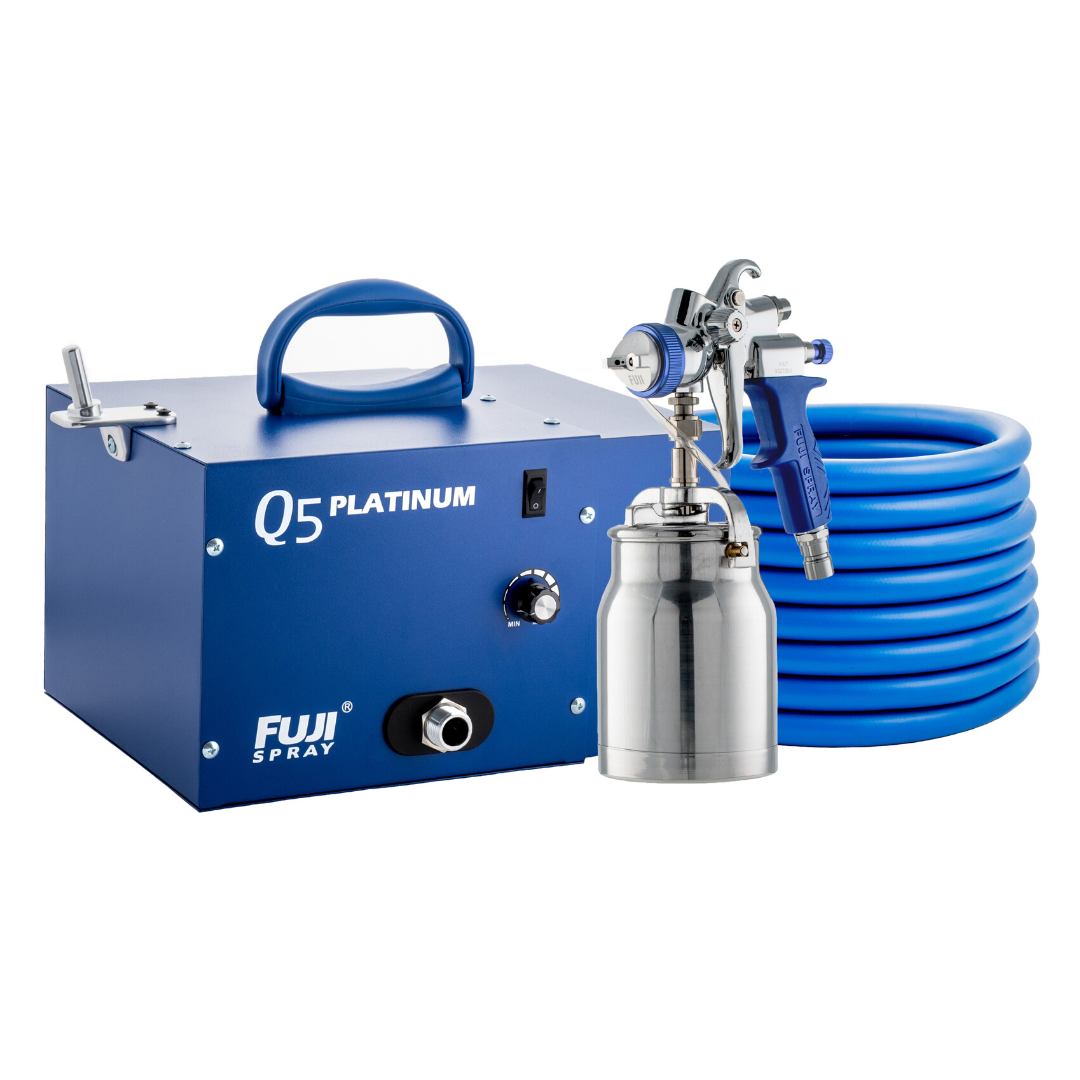

Fuji Q5 PLATINUM HVLP Paint Spray System
The Fuji Q5 PLATINUM is a 5-stage turbine HVLP system for fine finishing. It makes about 9.5 psi, so most coatings need little or no thinning. Choose from three non-bleed guns: T70, T75G or G-XPC.
Key Features
- 5-stage turbine, about 9.5 psi for fine atomization of thicker coatings.
- Variable speed control dial to adjust pressure to the coating.
- Quiet operation: 63 dBA at 15 ft, 60 dBA at 20 ft. Fuji says it cut turbine noise by over 50%.
- Heat Dissipation Chamber to move heat out of the turbine.
- 25 ft hose with quick-connect, plus a 6 ft whip hose in the bonus kit.
- 2-year warranty on parts and labour from Fuji.
Who It's For / What to Spray
The Q5 suits cabinet shops, furniture refinishers, trim carpenters and serious DIYers. Use it for cabinets, doors, furniture, trim and millwork with stains, lacquers, enamels, urethanes and waterborne or solvent-based paints.
Not ideal for large exterior walls or whole-house repaints. An airless sprayer covers big surfaces much faster.
Gun Options
- T70 Bottom Feed: 1 qt (1000 cc) cup. Best for bigger jobs and fewer refills.
- T75G Gravity Feed: 600 cc nylon cup. A good all-round choice for cabinets and furniture.
- GXPC Side Mount GF: 400 cc aluminum cup, mounted on the side. Suits tight spots and small parts.
Each gun is sold new or as an Open Box (A+) unit at a lower price. A+ open-box units are like new and come with the full manufacturer's warranty.
What's in the Box
- Q5 PLATINUM turbine with your choice of spray gun and cup
- 25 ft hose with quick-connect and air control valve
- #4 Ford viscosity cup, wrench, brush and manual
- 5 for 5 bonus kit: 6 ft whip hose, 19-piece gun cleaning kit, spare turbine filters, wet film gauge and booklet
Q5 vs Q4 and Mini-Mite 5
The Q4 PLATINUM is a 4-stage, 9 psi turbine at 22.7 lb. The Q5 adds a fifth stage and more pressure for thicker coatings. The Mini-Mite 5 PLATINUM has the same 5-stage, 9.5 psi motor in a lighter 15.2 lb body. Both come with the same three gun options, so choose the Mini-Mite 5 if you carry your sprayer from job to job.
Specs
| Model numbers | 3005-T70, 2895-T75G, GXPC-2895 |
| Motor | 5-stage turbine, about 9.5 psi |
| Speed control | Variable speed control dial |
| Noise | 63 dBA at 15 ft, 60 dBA at 20 ft |
| Cup (by gun) | T70: 1 qt (1000 cc). T75G: 600 cc nylon. GXPC: 400 cc aluminum |
| Air cap | 1.3 mm (T70, T75G). 1.4 mm (GXPC) |
| Hose | 25 ft (7.6 m) Hi-Flex |
| Power | 110–120 V, 60 Hz, 14.5 A |
| Turbine size | 14.87 x 11.5 x 9 in |
| Turbine weight | 24.06 lb |
| Filter | #5029 |
| Warranty | 2 years, parts and labour (Fuji) |
Setup & Use
- Set up the turbine on a flat, clean surface away from overspray, with the filter in place.
- Connect the hose to the turbine with the quick-connect and attach it to the gun.
- Strain the coating, fill the cup and check its viscosity with the #4 Ford cup. Thin only as the coating maker directs.
- Test on cardboard. Start with the speed dial low, then raise it for thicker coatings. Adjust the fan pattern and fluid flow until the spray is even.
- Spray with the gun square to the surface, overlapping each pass by about half.
- Clean right away. Empty the cup, run the correct cleaner through the gun, and brush the air cap and nozzle clean with the included kit.
- Check the turbine filter often and replace it when dirty.
FAQ
1Q5 vs Q4 vs Mini-Mite 5: which should I buy?
The Q5 has 5 stages and about 9.5 psi, versus 4 stages and 9 psi for the Q4. The Mini-Mite 5 has the same motor in a lighter 15.2 lb body, with the same three gun options.
2Which gun should I choose?
T70 for the large 1 qt cup. T75G for most cabinet and furniture work. GXPC for tight spaces and small parts.
3Can it spray latex paint? Do I need to thin?
Yes, it sprays waterborne and solvent-based coatings. Fuji says the Q5 needs little or no thinning. Follow the coating maker's directions and check viscosity with the included #4 Ford cup.
4How loud is it?
Fuji lists 63 dBA at 15 ft and 60 dBA at 20 ft.
5Is it good for cabinets and furniture finishes?
Yes. Fine atomization suits cabinets, doors, furniture and trim. Test your coating on scrap first.
6How long is the hose?
The Q5 comes with a 25 ft hose and a 6 ft whip hose. We also carry a 30 ft Super Duty hose.
7What warranty does it have?
Fuji gives a 2-year limited warranty on parts and labour.
8What does Open Box (A+) mean?
A+ open-box units are like new, sold at a lower price, and come with the full manufacturer's warranty. Questions? Contact us.
